Where should I mount the VAAST Surface Mount Bracket on my vehicle?

  • Last Updated:

For optimal performance, mount the VAAST Surface Mount Bracket in a location where at least 50% of the tank area is supported. This helps prevent excessive rocking and vibration while driving. Ensure that the mounting screws are placed at both ends of the bracket, with a minimum distance of 140mm apart. Alternative mounting points are available at 60mm hole centers.



CleanShot 2024-09-03 at 13.21.44.png

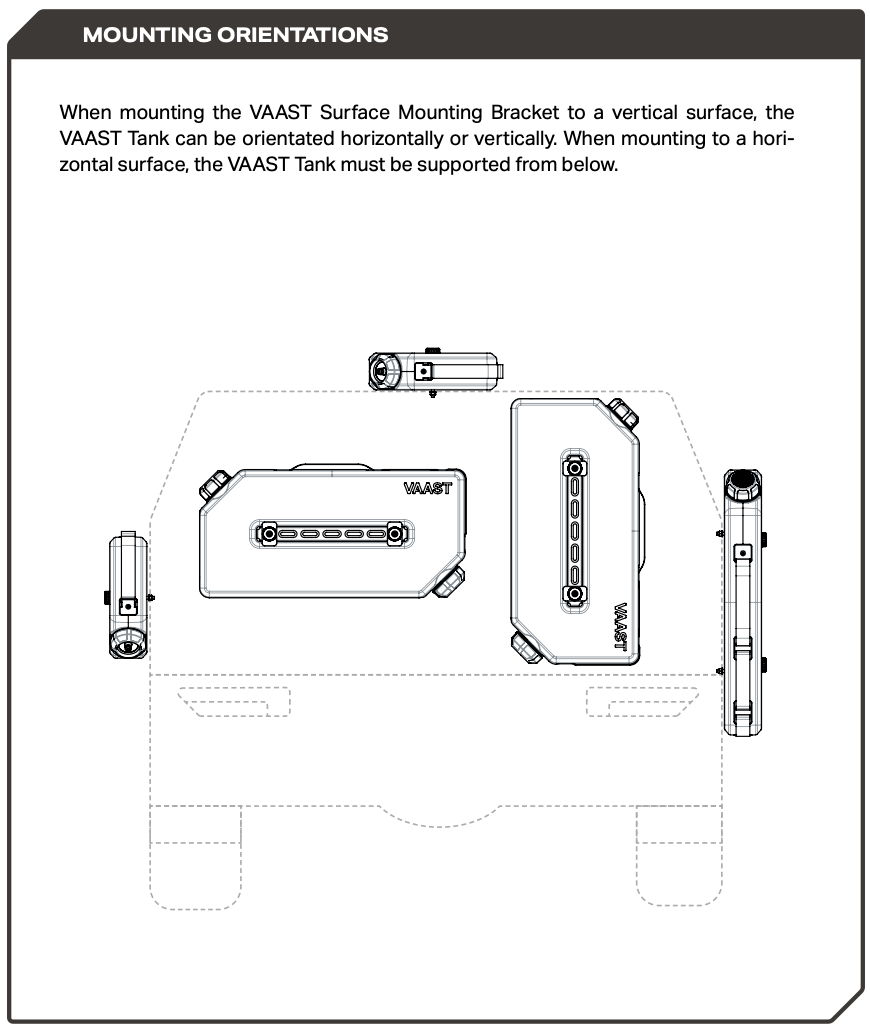

When mounting the VAAST Surface Mounting Bracket to a vertical surface, the VAAST Tank can be oriented horizontally or vertically. When mounting to a horizontal surface, the VAAST Tank must be supported from below.



CleanShot 2024-09-03 at 13.25.16.png
