GottaGo

In this video, you will learn about the GottaGo specs, what's included in the box, an overview of both the chemical and composting cassettes, as well as a general overview of the GottaGo features and how to use it.

What's in the box?

1x Joolca GottaGo Toilet

1x Urine compartment

1x Eco or Chemical Cassette (choose at checkout)

1x Po(o)ker Stick

1x Spray Bottle

Specifications and Materials

Sizes

• Load Capacity: 150kg (330lbs)

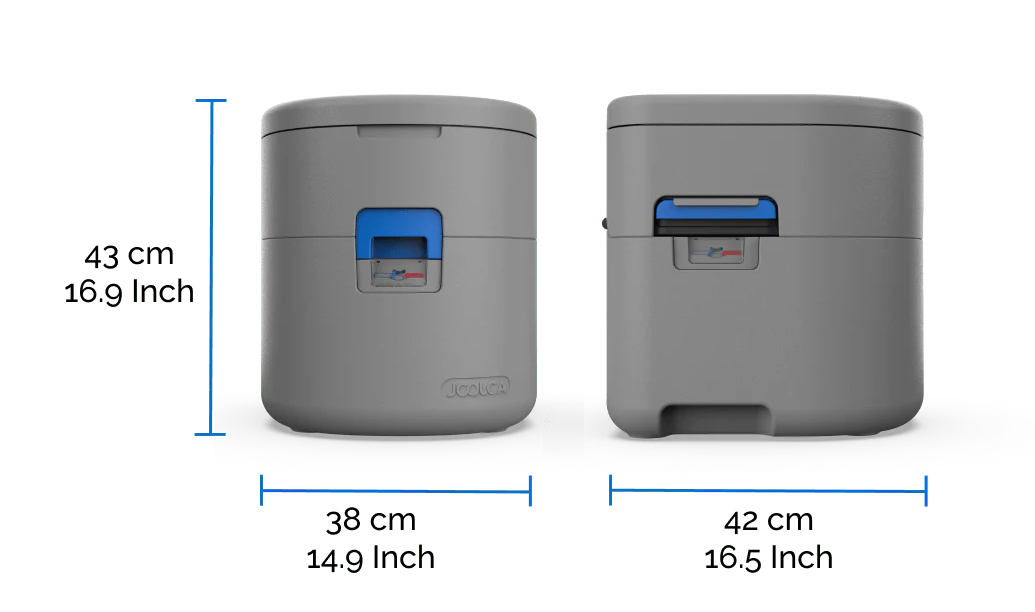

• Toilet: 380 W x 420 D x 430 H mm (14.9 W x 16.5 D x 16.9 H inch)
• Seat Height: 420mm H (16.5 H inch)
• Chemical Cassette: 371 W x 216 D x 326 H mm  (14.6 W x 8.5 D x H 12.8 inch)
• Eco Cassette: 371 W x 220 D x 294 H mm (14.6 W x 8.6 D x 11.6 H inch)
• Urine Container: 270 W  x 127 D x 268 H mm (10.6 W x 5 D x 10.5 H inch)

Usage Capacity

• Chemical Cassette: 11L (2.9 gal) approx. 19 uses
• Eco Cassette: 9.4L (2.5 gal) approx. 23 uses
• Urine Container: 4.6L (1.2 gal) approx. 12-15 uses

Weight

• GottaGo Empty: 7.7kg (16.9 lbs)
• GottaGo Full: 23.5kg  (51.8 lbs)
• Chemical Cassette Full: 13kg (28.6lbs)
• Eco Cassette Full: 11.5kg (25.3 lbs)
• Urine Container Full: 5.2kg (11.4 lbs)

Openings

• Solids opening: 100 H x 90 W mm (3.9 H x 3.5 W inch)
• Liquids opening: 10 H x 10 W mm (0.4 H x 0.4 W inch)

Materials

• Bowl & Base: Rotomolded LLDPE
• Urine Container: Blow Molded HDPE
• Solids Cassettes: Poly Propylene

Other

• Solids Opening Latch (fully extended): 120mm/4.72inches (recommend 180mm/7.09 inches away from the wall)
• Pooker stick & Spray bottle holder (fully extended): 100mm (3.94 inches)
• Space from back wall: Allow 200mm (7.87 inches) from the back wall to be able to open the GottaGo and take out cassettes
• Height when fully open: 750 mm (29.53 inches)
• x4 Bottom Screw Size: M4 x 0.7

For Liquids (Urine)

• Toilet: You can use toilets to dispose of liquid (urine).
• Outside: As long as it is 100m away from a water source, and be thoughtful and respectful of others when pouring a pee bottle outside (we don't want people seeing that!)
• Garden: Urine, because of its nitrogen content, is a great fertiliser for trees. When diluted, also for other plants. Dilute the urine (approx. 1:10) and fertilise other plants with it, of course not directly edible ones...

For Solids

Eco Cassette

The Eco setup is the easiest, letting you dispose of solids in any designated waste bin or composting heap —and GottaGo comes with an ingenious bag-closing system, so you won’t even have to see the contents of the bag as you tie it off and dispose of it.

Bagging

• Bin using your regular home bin - make sure to check your local regulation guidelines to see if binning human waste is allowed where you are
• Find a designated dump point near you
• Build a compost pile (use composting bags to make this easier)

Compost

Chemical Cassette

Disposal of chemical waste is usually done at designated dump points. These generally can be found at major campsites, caravan parks and some service stations. You can search for human waste dump points near you to find one. Alternatively, you can empty the chemical waste into your toilet.

To Empty:

1. Swivel out the nozzle and unscrew the cap.
2. Flick the dial switch to "VENT."
3. Carefully tip the chemical waste out.

What’s the Issue?

We have recently discovered that some early shipments of GottaGos are producing a small leak in the urine compartment. We have found that the root cause in these cases is not enough compression between the top section of the toilet (where the small urine hole is) and the urine container that sits underneath.

Temporary Fix

The temporary fix which will eliminate the possibility of leaking is to take the seal from the solid blue cap and add it on top of the installed seal on the open blue cap. The tabs on the seal will hold both seals in place. The additional height of the second seal will ensure that there will always be good compression between the surfaces of the urine funnel and the blue urine container cap.

• DO NOT Overtighten, just above finger tight is correct. If you overtighten this cap it will reduce the compression at the seal above.
• This fix implies that the urine container should always be emptied before travel, as the solid blue cap will no longer be functional.

Note: Make sure to reach out to customer support so that they can send you the new replacement urine cap & foam seals.

The Permenant Solution

To fix this, we’re providing two replacement parts designed to close this gap and eliminate the leak. These should be available in early March! If you're having this issue, reach out to support and they'll organise an order for the replacements for you.

• Thicker Foam O-Ring Seal: This sits around the urine hole (as pictured). This new seal is thicker, making for better compression between the urine hole and the urine container.
• Higher Urine Cap: This cap adds more height for a more snug fit with the new seal

How to Install Your Replacement Parts

New Urine Cap

1. Unscrew the old urine cap.
2. Screw on the new one. Done!

Installing the Foam O-Ring Seal

1. Remove the existing urine O-ring seal from around the urine hole at the top of the toilet
2. Get the new foam O-ring seal (one side will have clear tape with adhesive on it), and peel the clear tape to expose the adhesive
3. Position the foam O-ring around the urine hole
4. Press and hold the foam O-ring firmly in place for 60 seconds to allow the adhesive to cure properly.
