HOTTAP V2 specifications

  • Last Updated:

If you're after information about fittings, sizes, lengths, weights or other measurements for the HOTTAP V2, then this article is for you.

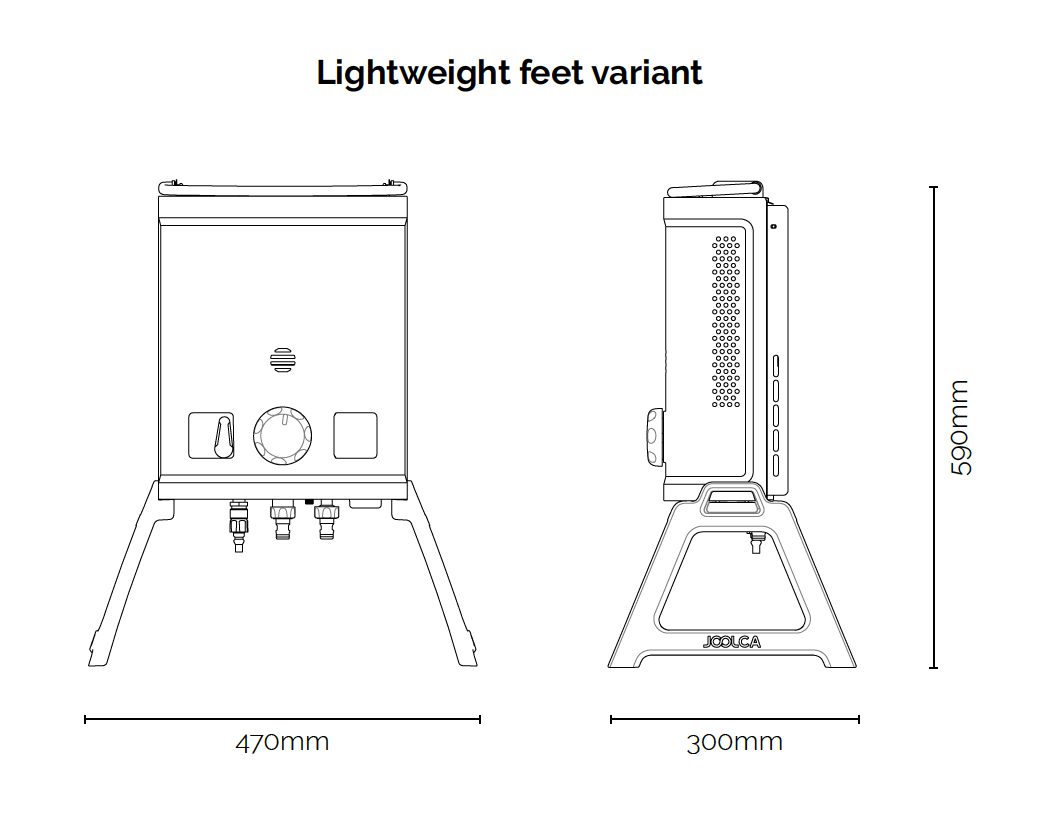

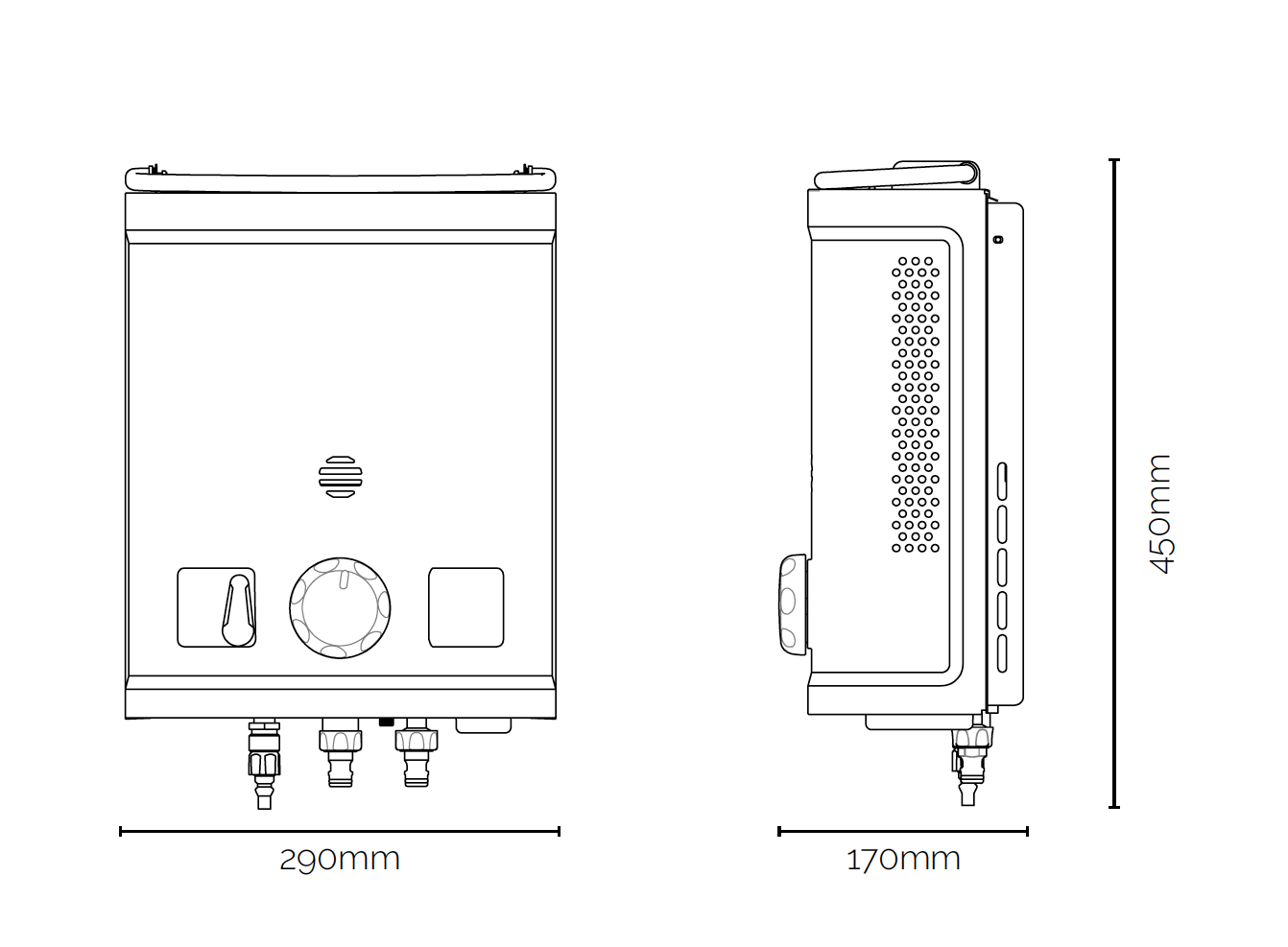

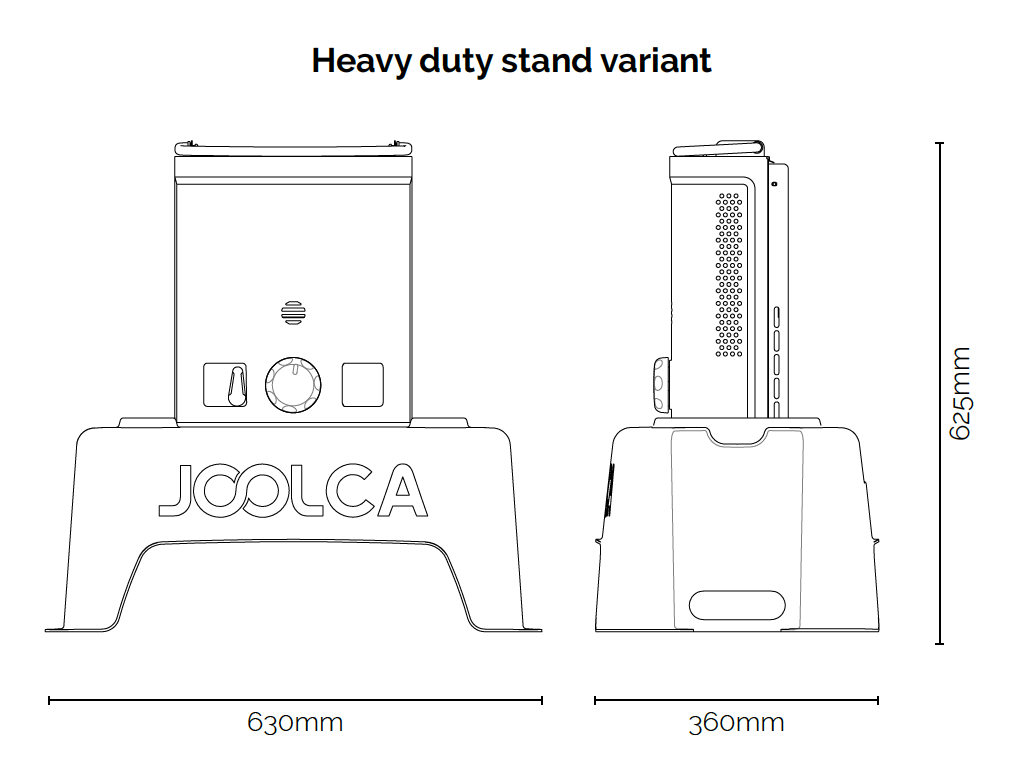

HOTTAP dimensions

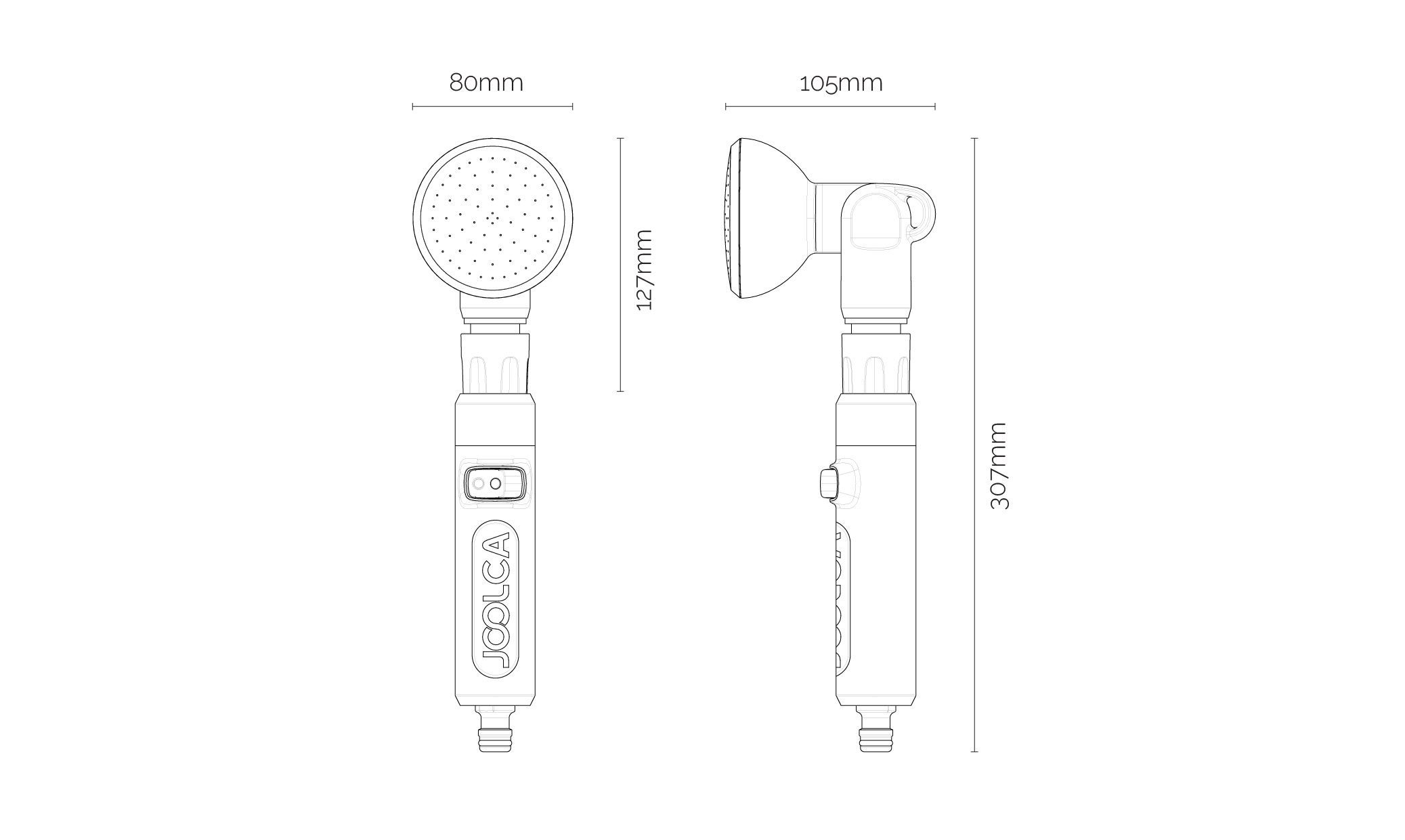

Shower head dimensions

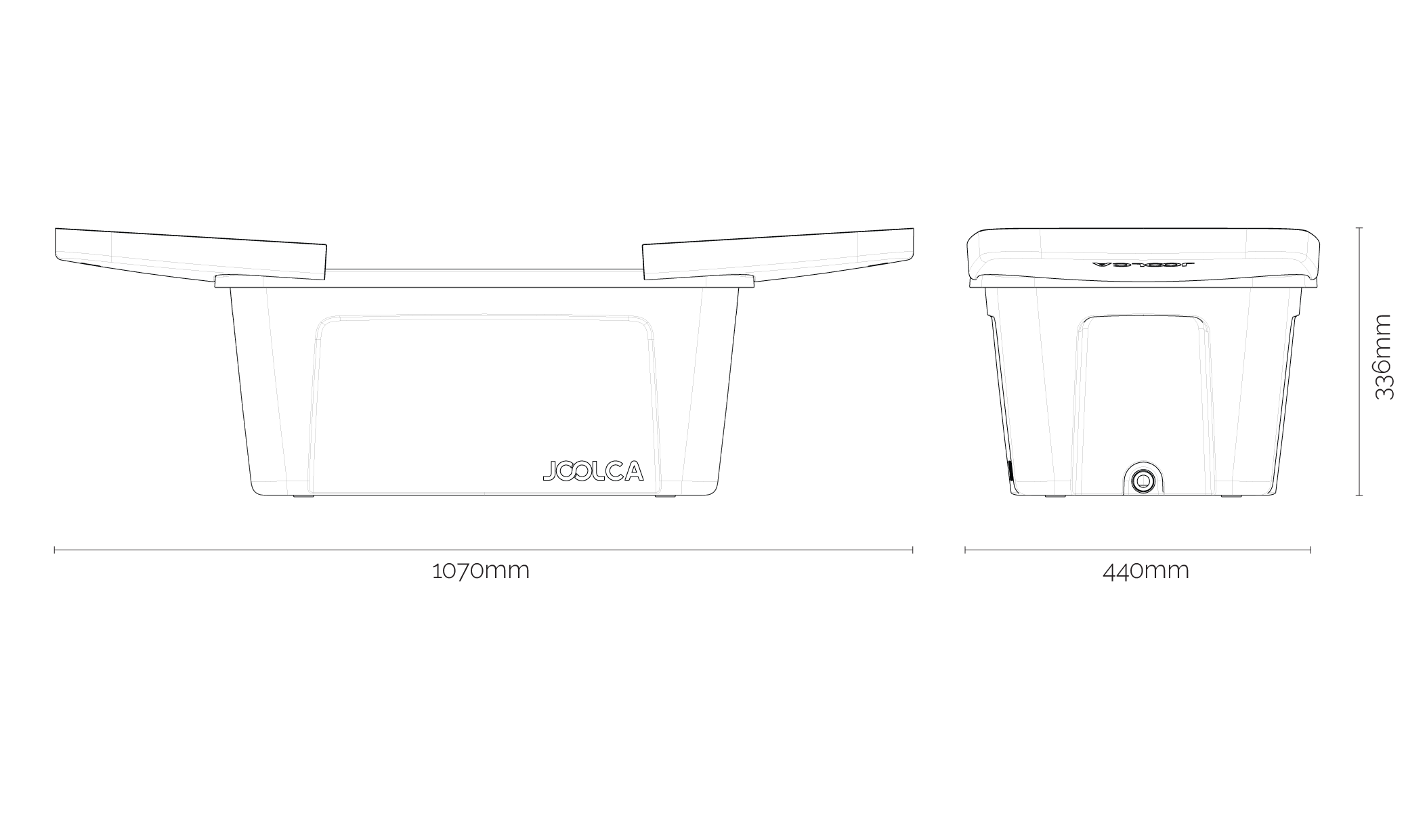

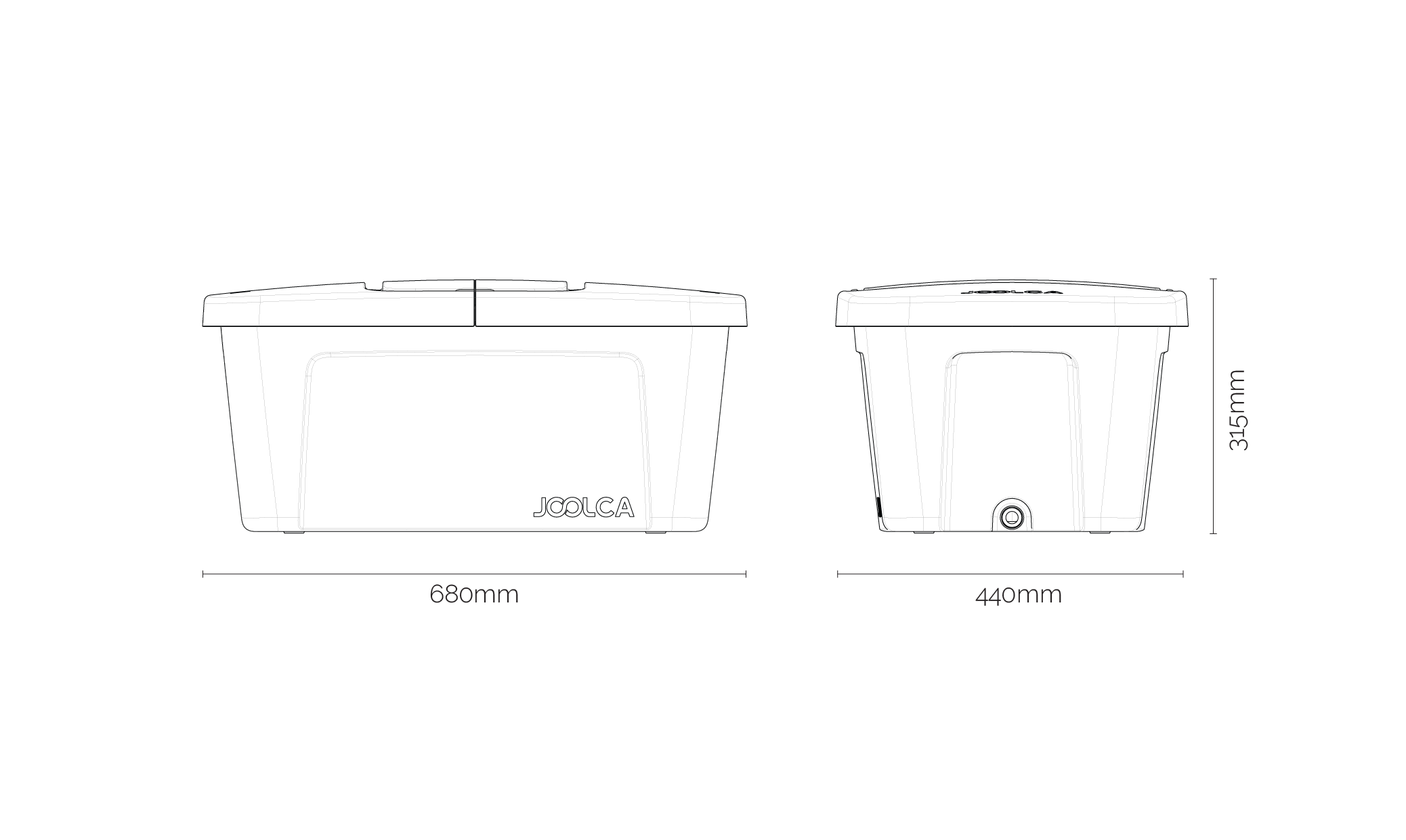

Storage tub dimensions


Tub Storage Capacity: ~50 Litres / 14 Gallons


Specifications

HOTTAP Unit & Accessories
Dimensions:  450H x 290W x 170D mm (17.7H x 11.4W x 6.6D inches)
Weight:  4.3kg (2.2 lbs)
Approval number:  GMK10121
Run Time with 9kg Bottle:  ~15hrs
Battery:   2 x D-cell (for ignition only)
Flow rate:   2.5L - 6L per minute (0.6 - 1.5 GPM)
Max. temp:   50°C (122F)
Min. water Pressure:  70kPa
Max. water Pressure:   900kPa
Gas hose length:   1.2m (4 ft)
Shower hose length:  5m (16 ft)
Pump hose length:  4m (2m each side) / 13 ft (6.5 ft each side)
Nominal gas consumption:  28MJ/h
Boxed dimensions Essentials: L 565mm (22.24 inches) X W 360mm (14.17 inches) X H 330mm (13 inches) (20.29 lbs)
Boxed dimensions Outing: L 585mm (23.03 inches) X W 330mm (12.99 inches) X H 360mm (14.17 inches) (26.46 lbs)
Boxed dimensions Nomad: L 717mm (28.25 inches) X W 480mm (18.5 inches) X H 355mm (14 inches) (40 lbs)
