12V Power Supply FAQs

  • Last Updated:

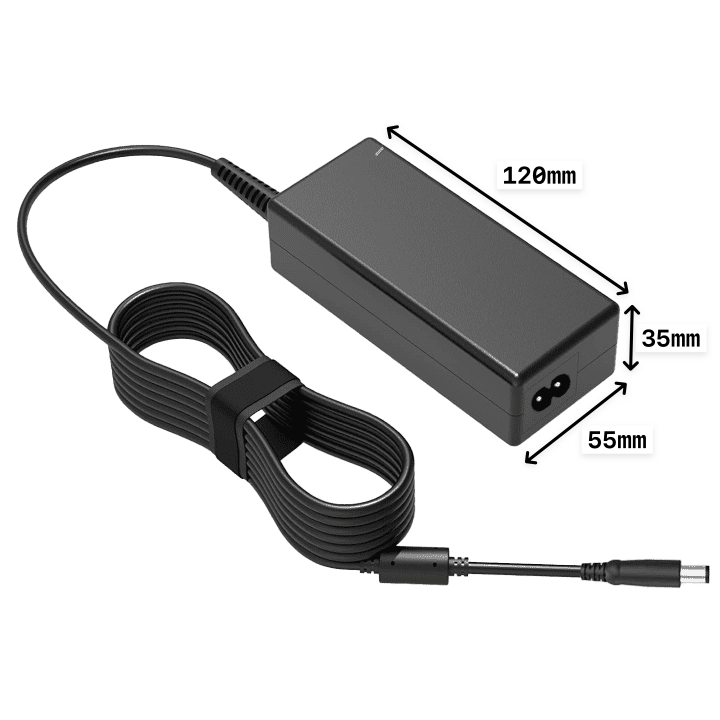

Dimensions

Adaptor

  • Length: 120mm
  • Width: 55mm
  • Height: 35mm


Specifications

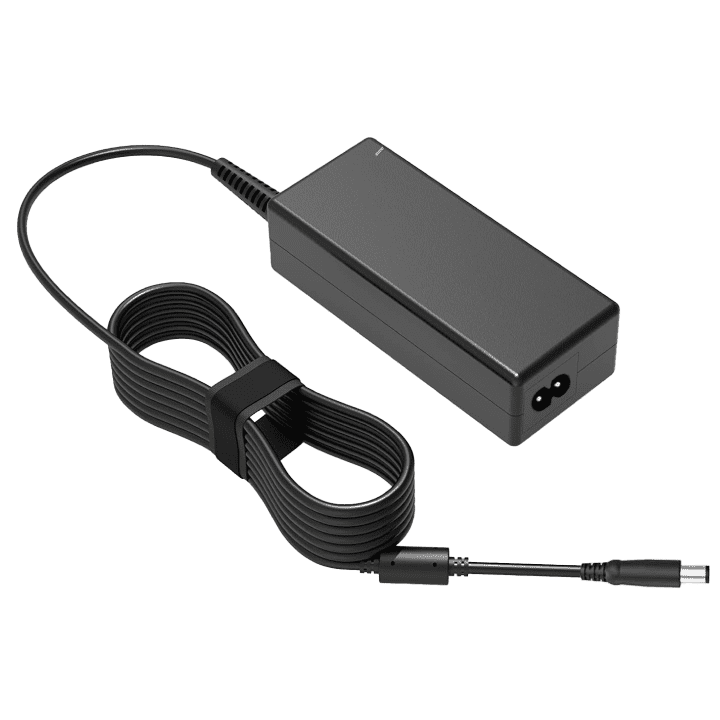

Adaptor

  • Input: AC100-240V 50/60Hz 1.5A
  • Output: 12V 5A (60 watt)
  • Approvals: CE and FCC Approval
  • DC Plug: 2.1mm Straight Edge Plug
  • Cable Length (DC): 1.2m

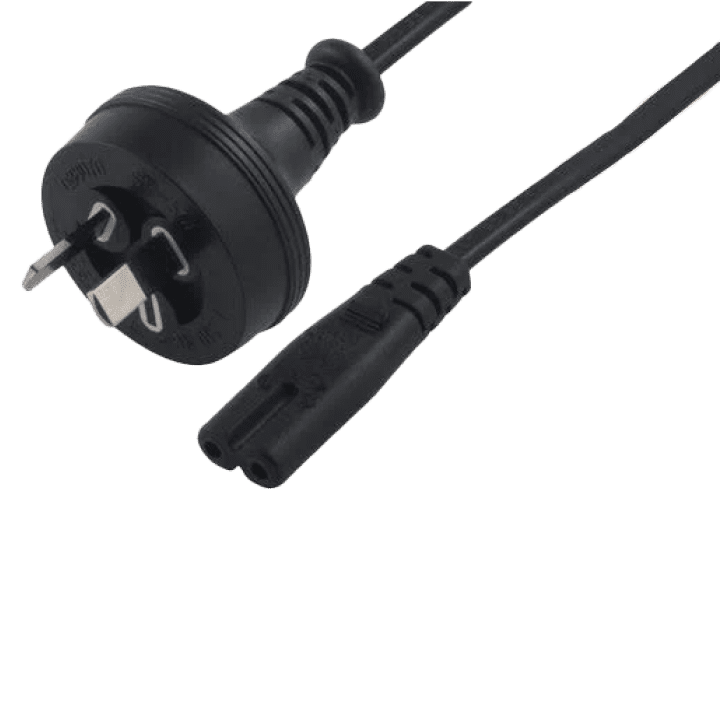

Australia & New Zealand wall plug

  • Male 2 Pin to Female IEC-C7
  • Cable Length (AC): 3.0m


America & Canada wall plug

  • Male 2 Pin to Female IEC-C7
  • Cable Length (AC): 3.0m

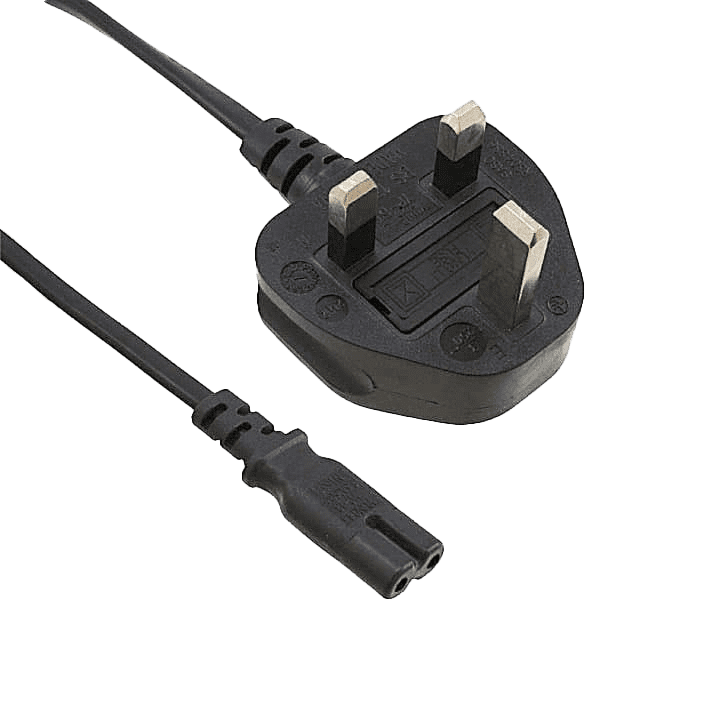

United Kingdom wall plug

  • Male 3 Pin to Female IEC-C7
  • Cable Length (AC): 3.0m
