I have leaking water fittings

  • Updated

If you have leaking water fittings, follow these steps to resolve the issue.

Watch this overview video and then go through each section for a summary of steps.

Leaking from the grey water fitting

If water is leaking out from the grey water fitting (which is on the end of every blue and red hose), you can tighten the fitting to ensure a full seal.

  1. Hold the top section of the grey fitting in one hand.
  2. Hold the bottom section of the grey fitting in the other hand.
  3. Tighten.

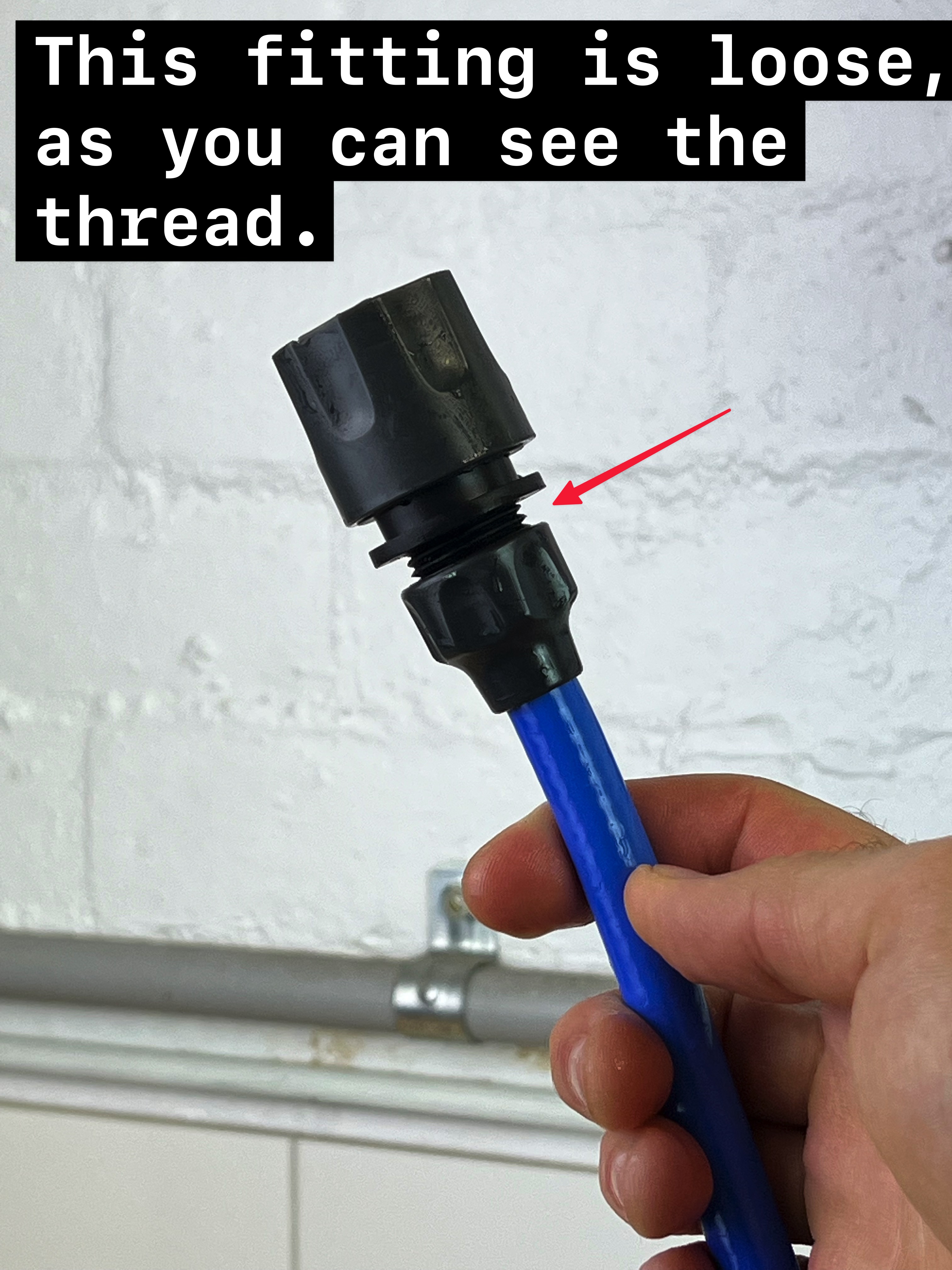

Loose fitting


Tight fitting

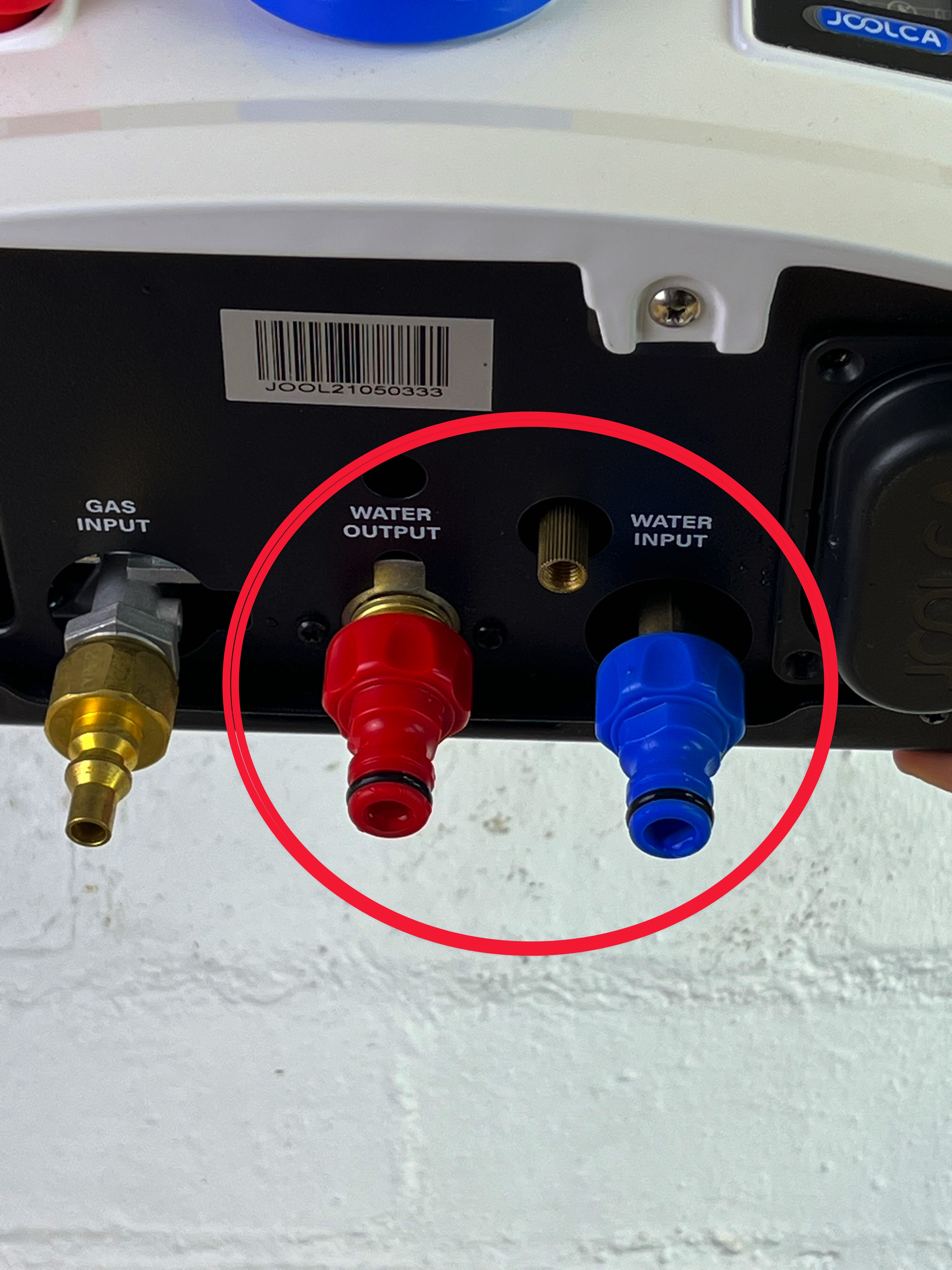

Leaking from the red or blue adaptor

If you notice water leaking from the top of the red or blue water fitting, and running down along the hose, you can tighten the fitting to ensure a full seal.

  1. Secure the HOTTAP with one hand.
  2. Hold the red or grey adaptor in the other hand.
  3. Tighten.


Leaking from the connection between hoses or adaptors

If you notice leaking when connecting different adaptors, like the red or blue adaptors on the HOTTAP, to the shower handle, to the Joolca pump, etc., make sure to fully press the hose onto the adaptor, to ensure a full seal.

  1. Hold the hose in one hand.
  2. Hold the adaptor, pump, etc. in the other hand.
  3. Press the hose connection until it is seated securely.

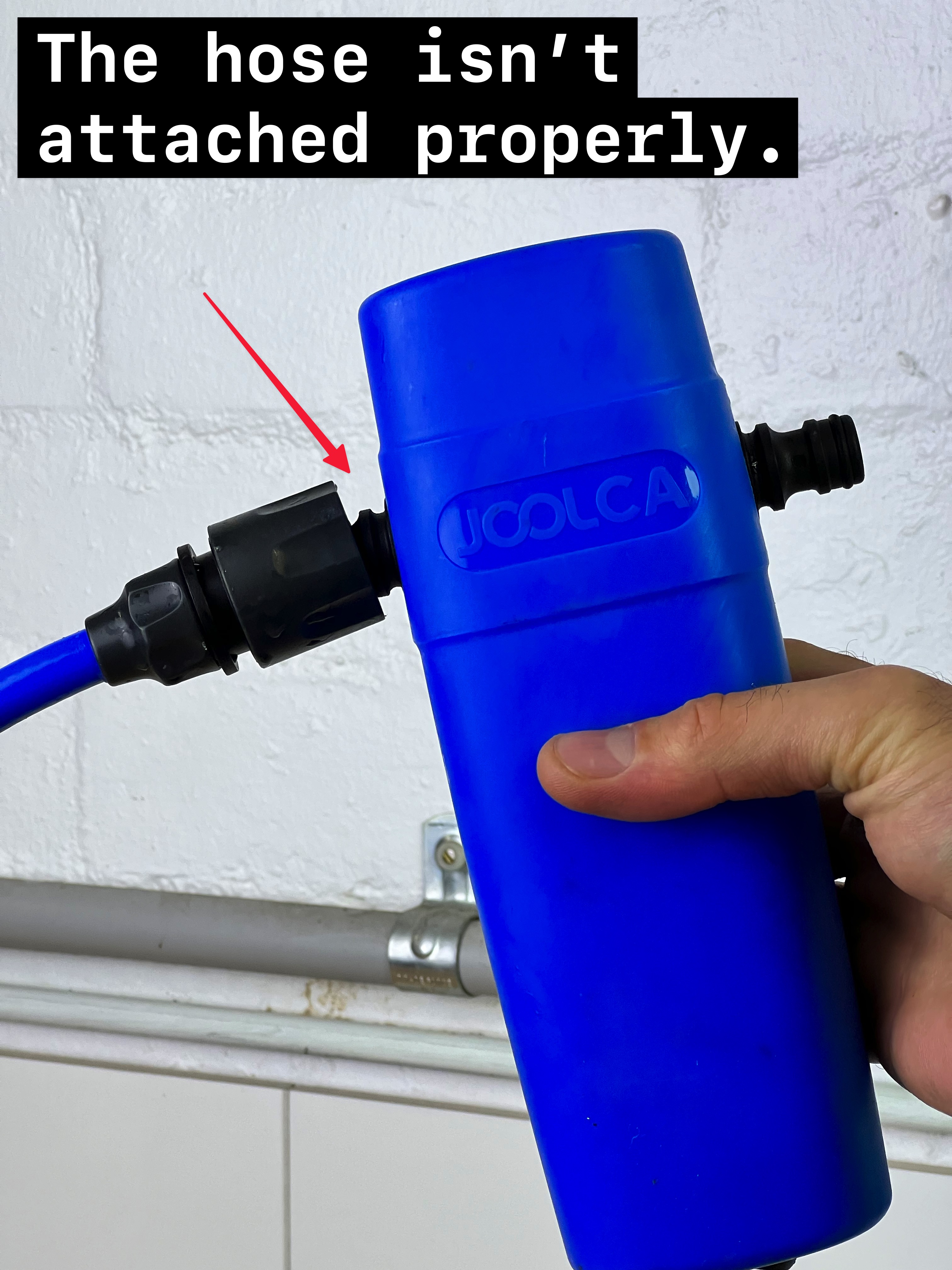

Not seated

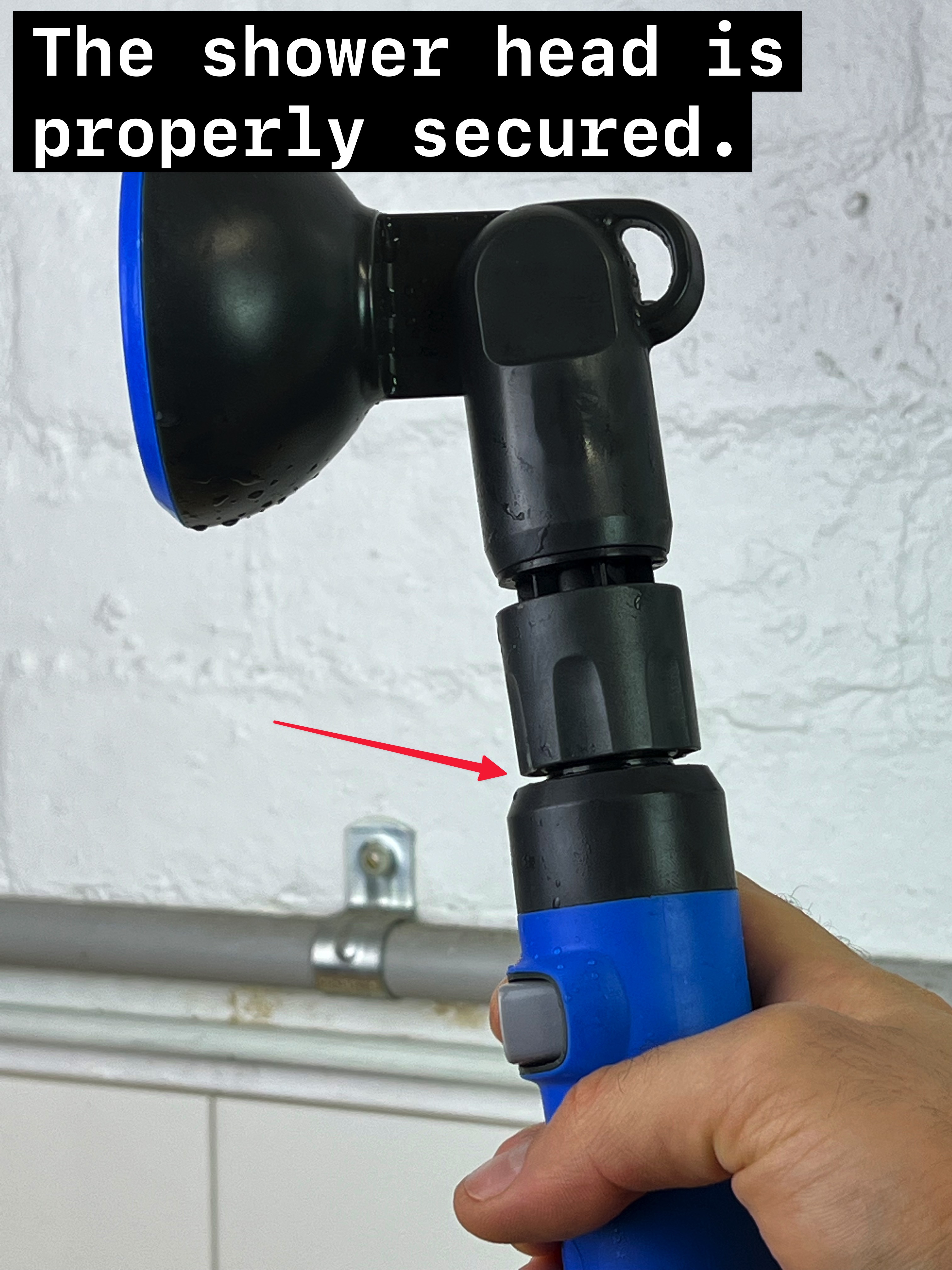

Properly seated

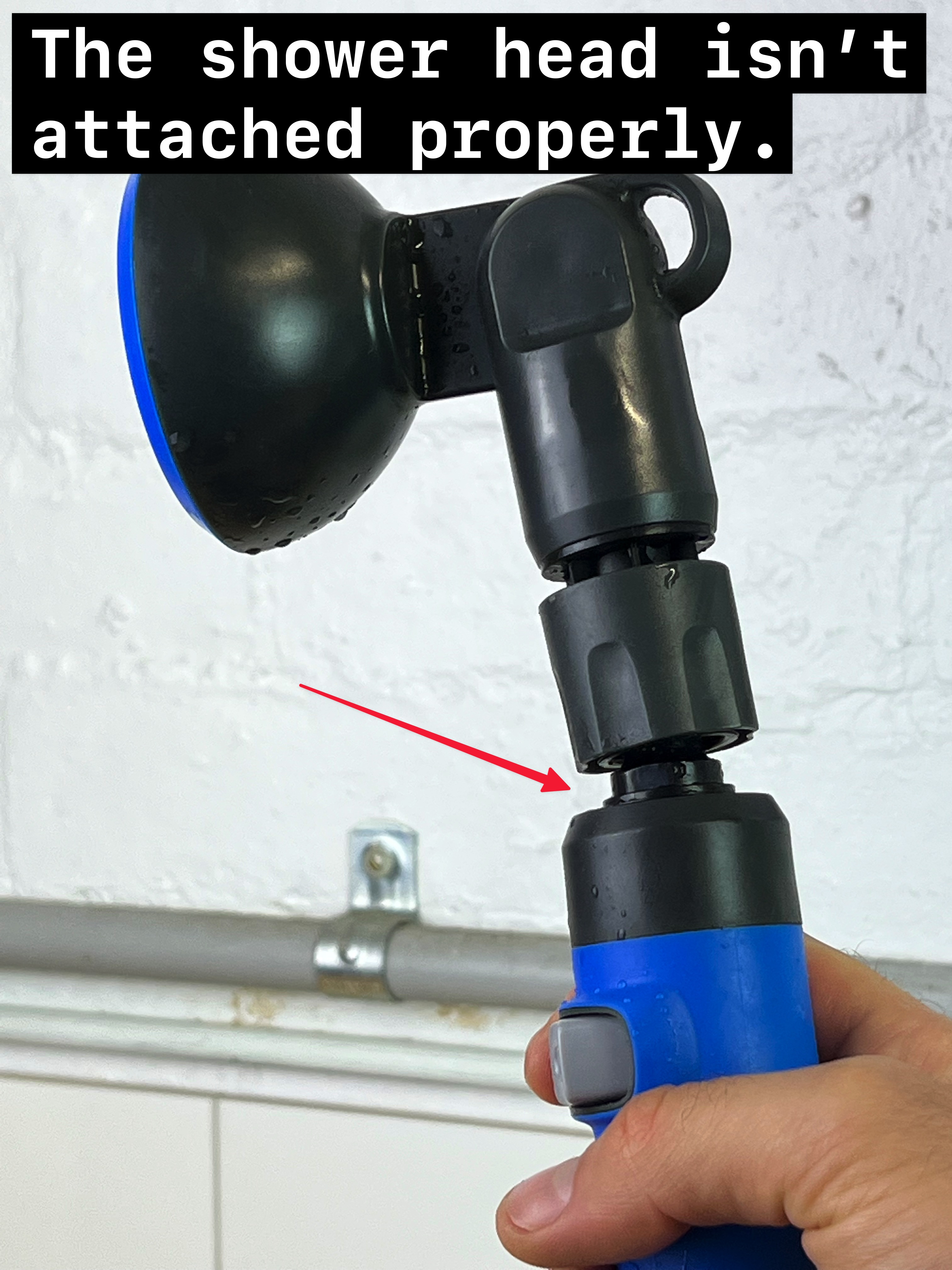

Not seated


Properly seated


Still heave leaking fittings

If still have leaking fittings after completing the above steps, please follow this guide and record a video of your HOTTAP and upload it here
